BACK :: WALL HUNG ELECTRIC WATER HEATER FOR RESIDENTIAL USE . . .

  Product Description


Solareks Wall Hung Residential Water Heater is designed to be used in homes, in small enterprises where hot water consumption is low. Temperature of water can be set by a user at the desired value. Water Heater heats water automatically and keeps it hot and ready for use in an insulated tank.
  Aesthetic Design
    Outer coverage of product can be illustrated according to the home interior design or user needs (optional).
  Capacity
    20 L 30 L 45 L 60 L 90 L 120 L
  Product Usage Areas
Wall hung electric water heater for residential use

WALL HUNG ELECTRIC WATER HEATER


Solareks Wall Hung Residential Water Heater can be used in:
-          Apartments
-          Houses
-          Small enterprises

In situation when more than 5 people have a shower at the same time you should use Solareks monophase water heater or Solareks monophase electric boiler.

  Comfort & Quality & Trust


Quality: Our products are designed after a long study in engineering, heat transfer and pressure vessels. Goods are made at the highest technical level in accordance with electrical safety. Our export is proof of our quality.

Comfort: All products are designed according to the users’ needs and requirements in order to provide maximum comfort.

Trust: Solareks goods comply with the world standards. Our products are presented in foreign countries (3 continents/23 countries) and domestic market under Solareks assurance.

  Technical Specifications


- Water temperature can be adjusted in range 30°C  to 90 °C
- Overheating thermostat: electric water heater is automatically operated by the thermostat
- Monophase 1,95 kW electric heating element
- P&T Valve (additional)
- Mixing Valve (additional)
- Pressure safety valve
- 316 L / 316 Ti Stainless steel electric heating element (optional)
- Cathodic protection element
- Silicon cable
- Polyurethane insulation material
- Wall hanging accessories
- EWHs can be hanged on the wall horizontally (additional)
* 120 l product is equipped with two piece of electric heating element ( 2x1,95 kW=3,9 kW

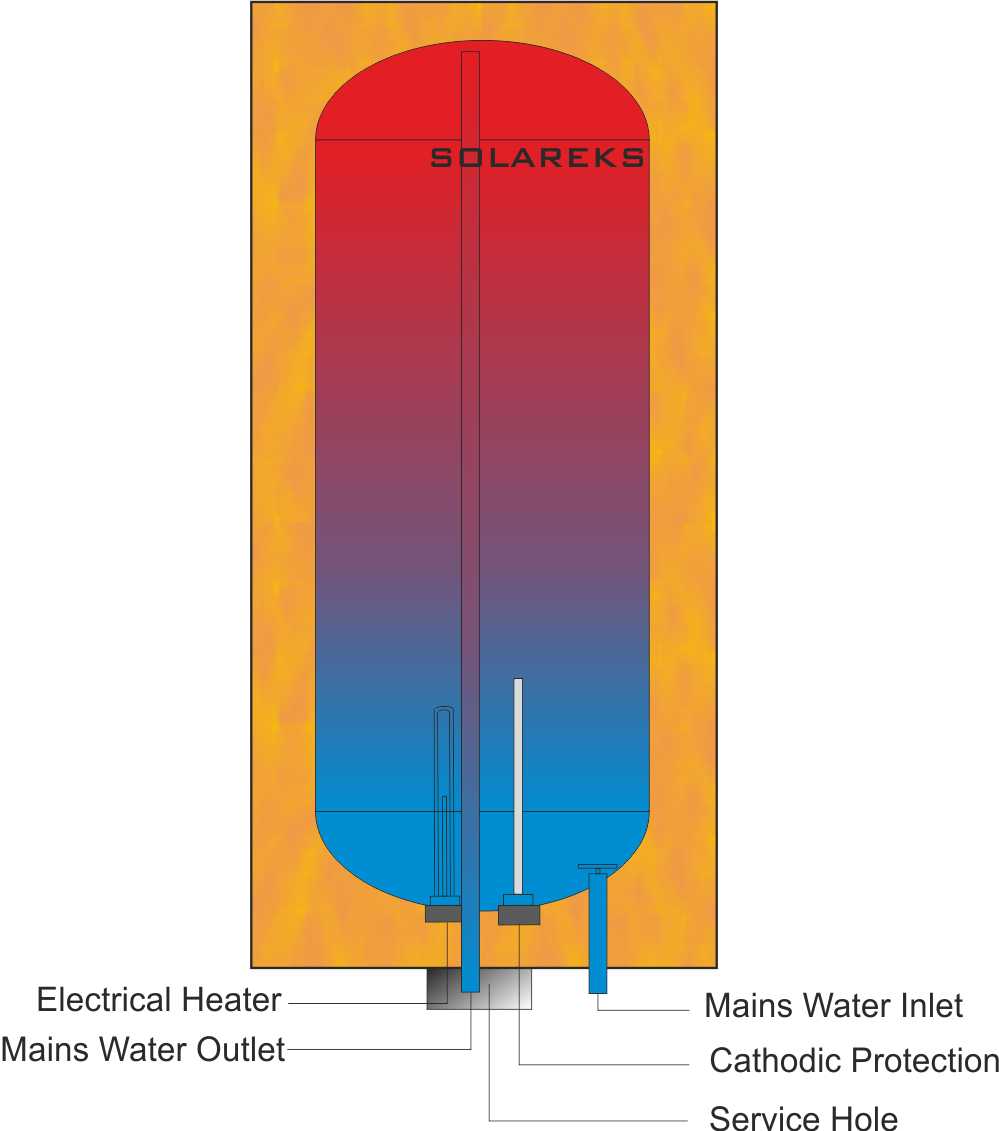

Wall hung electric water heater for residential use

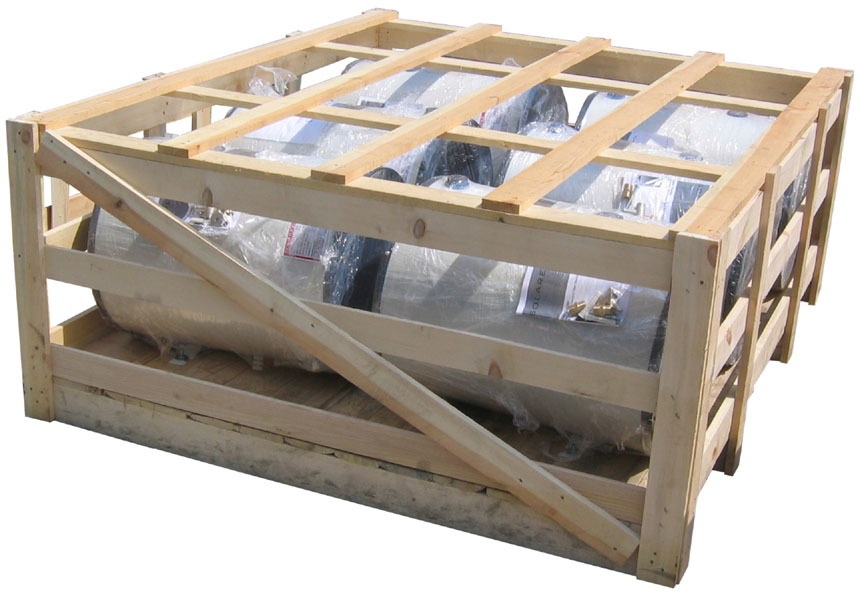

  Packing


Bubbled nylon or wood box

  Inner Tank Material


Inner tank is produced by two kinds of steel:
A-    Black carbon steel, tank is hot dip galvanized after welding process
B-    304 L or 316 L quality stainless steel (inox)

  Coating material


- Hot dip galvanized steel painted into white colour and covered with polyethylene against scratching
- Brushed stainless steel which covered with polyethylene against scratching (additional)
- Photo covered body (additional)

  Electrical Specifications


Products are produced in accordance with main electrical standards in every country.

Example: Monophase, 50 - 60 Hertz, 100V/110V/115V/120V/125V/127/200V/202V/220V/230V/240V/250 Volt

  Warranty


A-    Hot Dip Galvanized Tank Model: 2 years

B-  Stainless Steel Tank Model: 5 years

Electrical Equipment: 2 years




Wall hung electric water heater for residential usage

Wall hung electric water heater
