BACK :: WALL HUNG ELECTRIC BOILER FOR RESIDENTIAL USE . . .

Product Description

Solareks wall hung residential electric boiler is designed to be used in homes, in small enterprises where hot water consumption is low. Electric boiler can work simultaneously or separately with two types of energy:

1- Electric energy
2- Energy of solid/fuel/gas central heating system, solar energy, heat pump energy, waste energy

Product can be connected to central heating system easily. In summer season when the central heating of the building is turned off water can be heated by electricity or solar energy. In winter time water can be heated by solid/fuel/gas central heating system, heat pump, waste energy. During winter season electricity consumption of the building will be decreased.

Temperature of water can be set by a user at the desired value (electric energy only). Water Heater heats water automatically and keeps it hot and ready for use in an insulated tank.

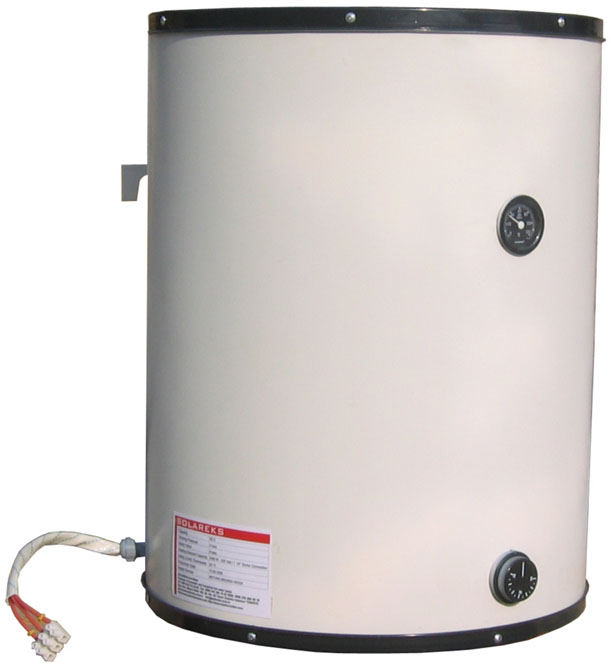

WALL HUNG ELECTRIC BOILER FOR RESIDENTIAL USE

Aesthetic Design

Outer coverage of product can be illustrated according to the home interior design or user needs (optional).

Capacities

20 L – 30 L – 45 L – 60 L – 90 L – 120 L

Product Usage Areas

-          Apartments
-          Houses
-          Small enterprises

In situation when more than 5 people have a shower at the same time you should use Solareks monophase water heater or Solareks monophase electric boiler.

Comfort & Quality & Trust

Quality: Our products are designed after a long study in engineering, heat transfer and pressure vessels. Goods are made at the highest technical level in accordance with electrical safety. Our export is proof of our quality.

Comfort: All products are designed according to the users' needs and requirements in order to provide maximum comfort.

Trust: Solareks goods comply with the world standards. Our products are presented in foreign countries (3 continents/23 countries) and domestic market under Solareks assurance.

Technical Specifications

- Water can be heated by electric heating elements and central heating system of the building

- Overheating thermostat: electric water heater is automatically operated by the thermostat

- Water temperature can be adjusted in range 30°C to 90 °C

- Monophase 1,95 kW electric heating element

- 120 lt product is equipped with two piece of electric heating element ( 2x1,95 kW=3,9 kW)

- Pressure safety valve

- Cathodic protection element

- P&T Valve (additional)

- Mixing Valve (additional)

- Silicon cable

- 316 L / 316 Ti Stainless steel heating element (optional)

- Wall hanging accessories

- EWHs can be hanged on the wall horizontally (additional)

- Polyurethane insulation material

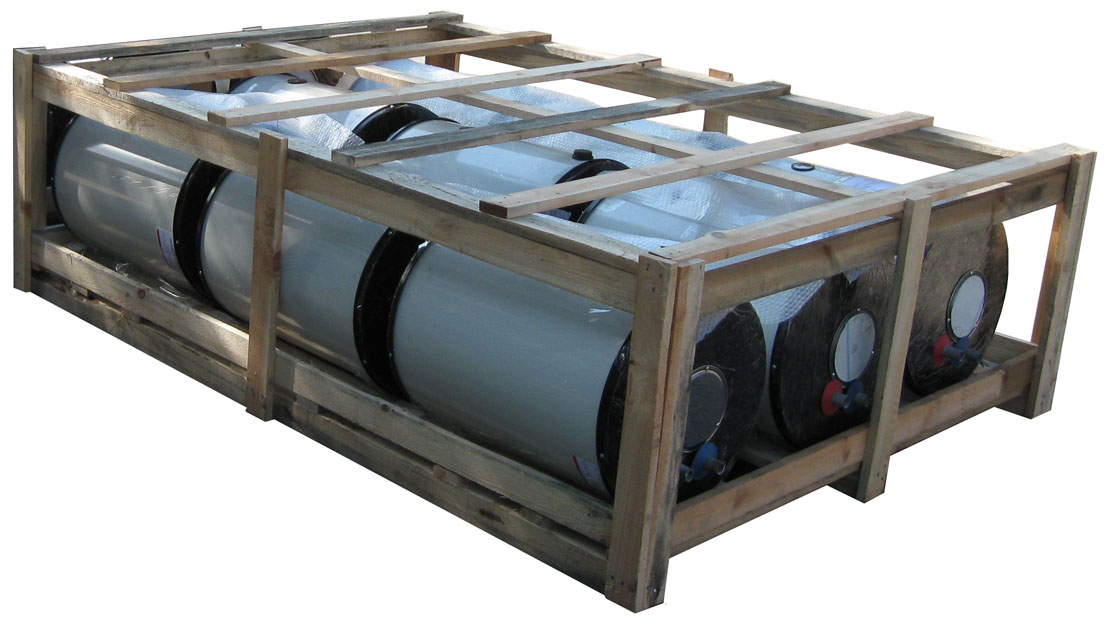

Packing

Bubled neylon or wood box

Inner Tank Material

Inner tank is produced by two kinds of steel:
A- Black carbon steel, tank is hot dip galvanized after welding process
B- 304 L or 316 L quality stainless steel (inox)

Coating material

- Hot dip galvanized steel painted into white colour and covered with polyethylene against scratching
- Brushed stainless steel which covered with polyethylene against scratching (additional)

- Photo covered body (additional)

Electrical Specifications

Products are produced in accordance with main electrical standards in every country.
Example: Monophase, 50 - 60 Hertz, 100V/110V/115V/120V/125V/127/200V/202V/220V/230V/240V/250 Volt

Warranty

A- Hot Dip Galvanized Tank Model: 2 years
B- Stainless Steel Tank Model: 5 years
Electrical Equipment: 2 years
