:: THREE-PHASE INSTANT ELECTRIC WATER HEATER FOR INDUSTRIAL USE . . . |
| |
Product Description |
|
|
| |
|

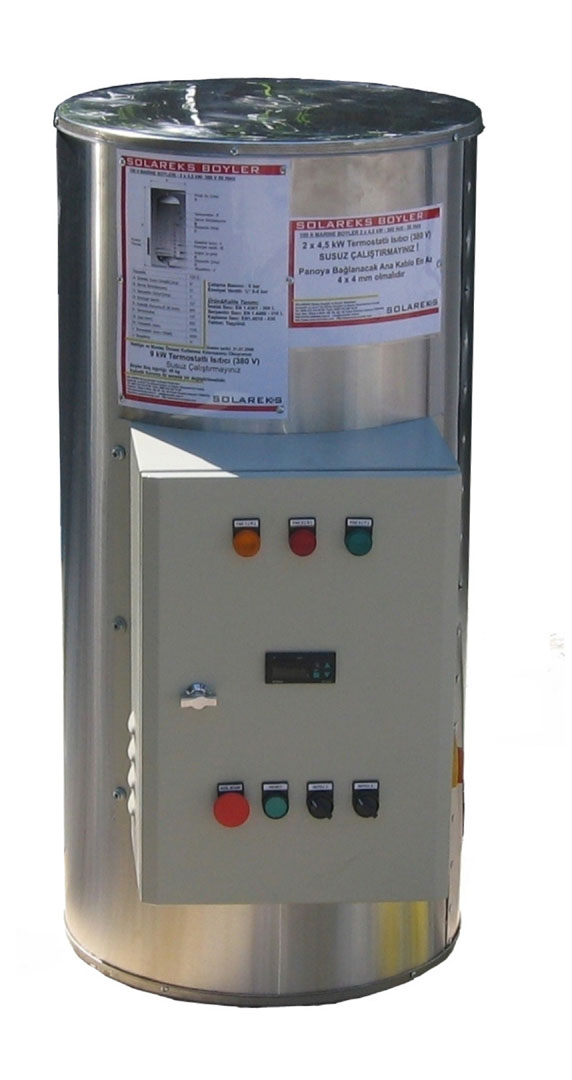

Industrial instant electric water heater is produced to be used
for heavy-duty where there is a small area to install the
product. Product’s most important specification is that the
product dimensions are very small compared to hot water
generating capacity. Because of that transportation costs of the
product is low and product can be shipped by small cargo aircrafts.
Products are produced by high quality materials and equipments
according to safety regulations of every country. Water is
heated by three-phase electric heating elements.
Temperature of water can be set by a user at the desired value.
Water Heater heats water automatically and keeps it hot and
ready for use in an insulated tank.
To be well informed
about hot water generating capacities of the products check our
catalogues please. |
|
|
|
| |
Capacities |
| |
|
100 L – 160 L – 200 L – 250 L – 300 L – 400 L –
450 L |
|
|
|
|
| |
Product Usage Areas |
|
| |
|
Industrial
instant electric water heater is produced to be used for heavy duty where there
is a small area to replace the product. Some hints are listed below:
-
Industrial instant
electric water heater
is suggested
when there is a small place for
installation
-
Industrial instant electric
water heater is suggested where the transport costs are very high
-
The product is suitable for cargo aircrafts |
|
| |
Comfort & Quality &
Trust |
|
| |
|
Quality:
Our products are designed after a long study in engineering,
heat transfer and pressure vessels. Goods are made at
the highest technical level in accordance with electrical
safety. Our export is proof of our quality.
Comfort: All products are
designed according to the users' needs and requirements
in order to provide maximum comfort.
Trust: Solareks goods comply with the world
standards. Our products are presented in foreign countries (3 continents/23
countries) and domestic market under Solareks assurance. |
|
| |
Technical
Specifications |
|
| |
|
- Time needed for heating water: 10-20 minutes
- Each electric heating element can be turned off/on separately
- Water temperature can be adjusted in range 30°C to 90 °C
- Electric heating elements are operated automatically by digital thermostat
- Electric heating power range: 30-80 kW
- Polyurethane/Glass-wool/Rockwool insulation material
- Overheating thermostat
- Pressure safety valve
- Cathodic protection element
- Silicon cable
- Low water cut out device (additional)
- High quality Siemens made electric equipments are used in the control panel of the product
- 316 L / 316 Ti Stainless steel electric heating element (optional)
- Warning light (additional)
- Flanged connection (additional)
- P&T Valve (additional)
- Mixing Valve (additional)
- Secondary containment tank against leaking water (additional)
- Extra wall hanging equipment (additional)
- Cooling fan (additional)
- Circulation pump, automatic valve (additional) |
|
|
|
| |

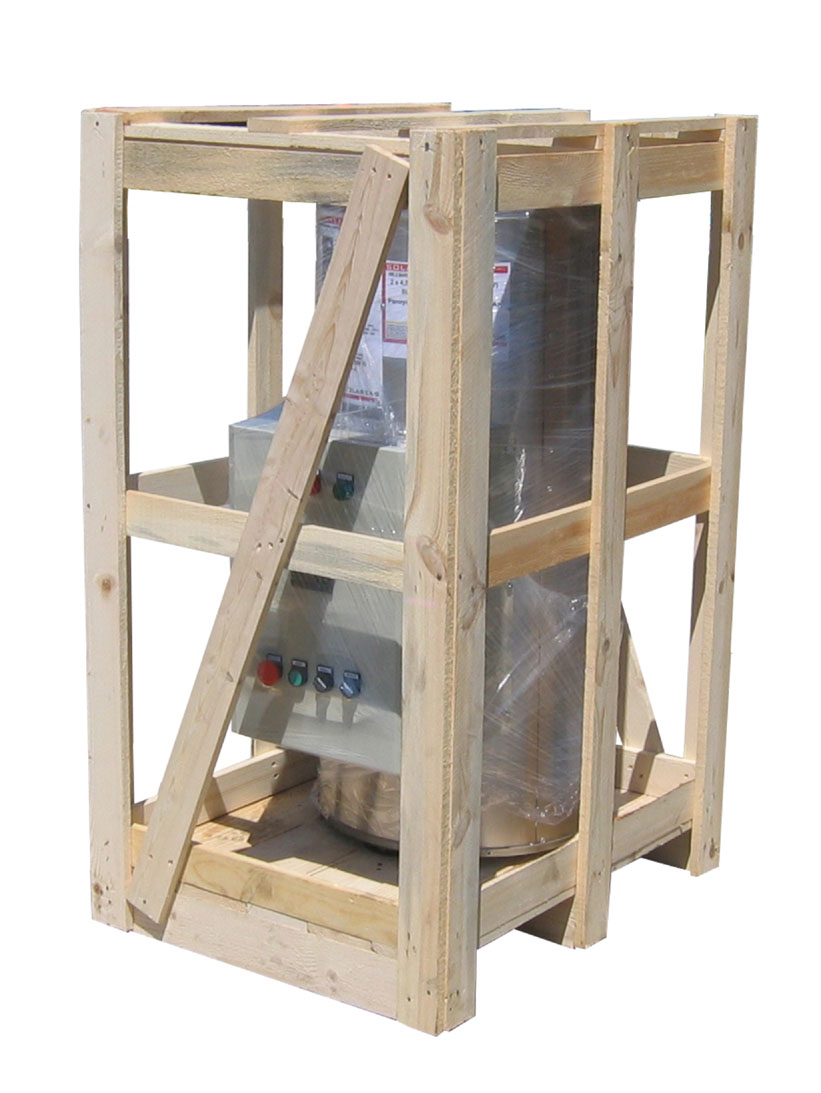

Packing
|
|
| |
|
Woodbox
Product can be shipped in vertical and horizontal positions |
| |

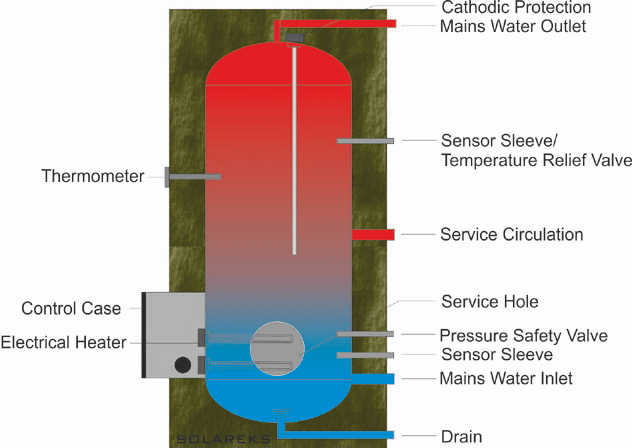

Inner Tank Material |
|
| |
|
Inner tank can be produced by one of two kinds of
steel:
A-
Black carbon steel, tank is hot dip
galvanized after welding process
B-
304 L or 316 L quality stainless steel (inox) |
|
| |
Coating material |
|
| |
|
- Hot dip galvanized steel painted into white colour and covered with polyethylene against scratching
- Brushed stainless steel which covered with polyethylene against scratching (additional) |
| |
Electrical
Specifications |
|
| |
|
Products are produced in accordance with main electrical standards in every
country.
Example: three-phase, 50 - 60 Hertz,
190V/200V/208/216V/220V/230V/240V/380V/400V/415V/433V/440V/460V/480V/ 575Volt
|
|
| |
Warranty |
|
| |
|
A-
Hot Dip Galvanized Tank Model: 2 years
B- Stainless Steel Tank Model: 5 years
Electrical Equipment: 2 years |
| |
|
|
| |
|
|
| |
|
 |
