BACK :: THREE-PHASE ELECTRIC WATER HEATER FOR INDUSTRIAL USE . . .

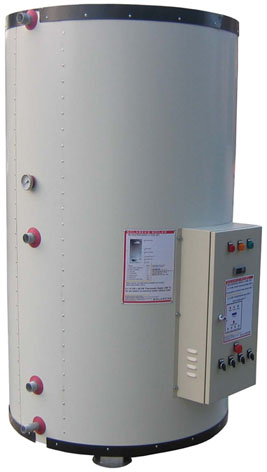

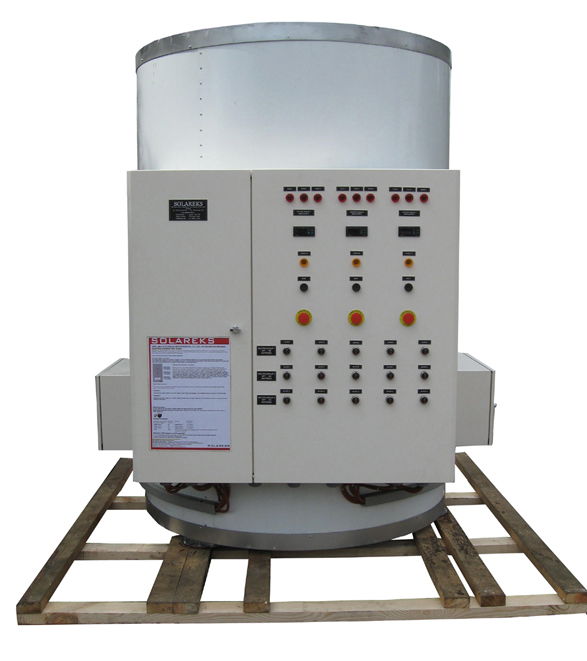

  Product Description



Industrial electric water heater is designed for heavy-duty. Products are produced by high quality materials and equipments according to safety regulations of every country. Water is heated by three-phase electric hot water heaters.

Temperature of water can be set by a user at the desired value. Water Heater heats water automatically and keeps it hot and ready for use in an insulated tank.

To be well informed about hot water generating capacities of the products check our catalogues please.

  Capacities


100 L – 160 L – 200 L – 250 L – 300 L – 400 L – 450 L – 500 L – 600 L – 750 L – 1000 L – 1250 L – 1500 L – 1750 L – 2000 L – 2500 L – 3000 L – 4000 L – 5000 L

  Product Usage Areas
THREE-PHASE ELECTRIC WATER HEATER FOR INDUSTRIAL USE

THREE-PHASE ELECTRIC WATER HEATER


Industrial electric water heater is designed for heavy-duty. Some hints are listed below:

-          If the water consumption is more than 300 l/hour industrial electric water heater is suggested

-          If the existing cable of the building is not enough to load monophase electric heater industrial three-phase electric heater is suggested to be used. Three-phase product consumes less current than monophase product does.

-          Solareks industrial electric water heater has more safe and automatic specifications. That’s why it is suggested to be used in buildings where hot water consumption is high and comfort is important.

-          Due to the fact that industrial electric water heater has high power capacities, installation of industrial electric heater will decrease investment rather than installation of many monophase electric water heaters.

The electricity consumption of three-phase electric water heater is lower than of monophase electric water heater in situation where a compensator is used in the building.

  Comfort & Quality & Trust


Quality: Our products are designed after a long study in engineering, heat transfer and pressure vessels. Goods are made at the highest technical level in accordance with electrical safety. Our export is proof of our quality.

Comfort: All products are designed according to the users’ needs and requirements in order to provide maximum comfort.

Trust: Solareks goods comply with the world standards. Our products are presented in foreign countries (3 continents/23 countries) and domestic market under Solareks assurance.

  Technical Specifications


- Each electric heating element can be turned off/on separately
- Water temperature can be adjusted in range 30°C  to 90 °C
- Electric heating elements are automatically operated by digital thermostat
- Electric power range: 9-240 kW
- Polyurethane/Glass-wool/Rockwool insulation material
- Overheating thermostat
- Pressure safety valve
- Cathodic protection element
- Silicon cable
- Low water cut out device (additional)
- High quality Siemens made electric equipments are used in the control panel of the product
- 316 L / 316 Ti Stainless steel electric heating element (optional)
- Warning light (additional)
- Flanged connection (additional)
- P&T Valve (additional)
- Mixing Valve (additional)
- Secondary containment tank against leaking water (additional)
- Extra wall hanging equipment (additional)
- Cooling fan (additional)
- Circulation pump, automatic valve (additional)

THREE-PHASE ELECTRIC WATER HEATER FOR INDUSTRIAL USE

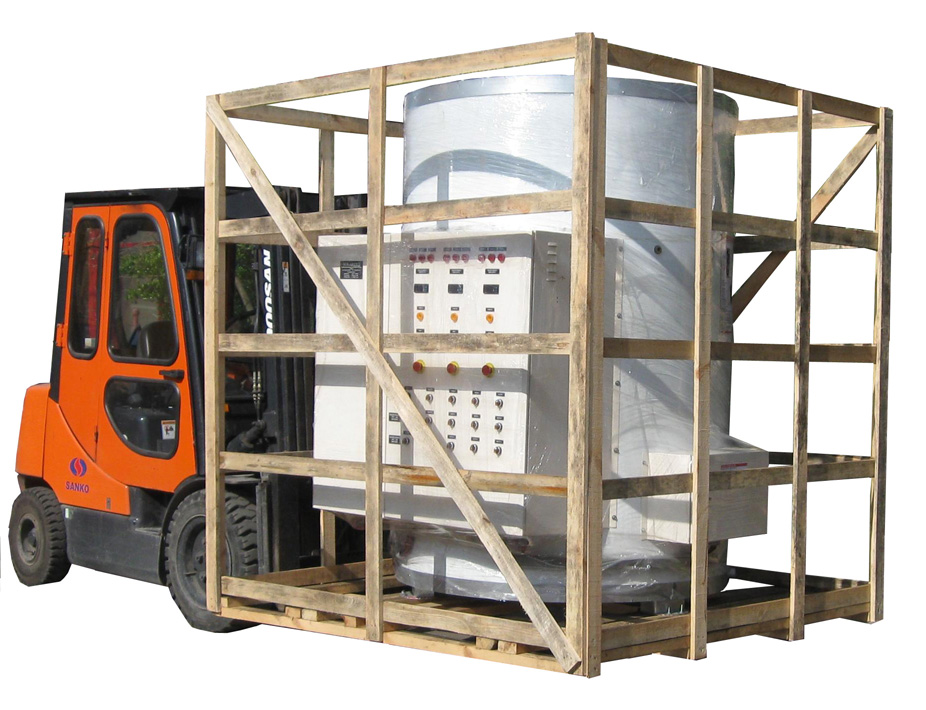

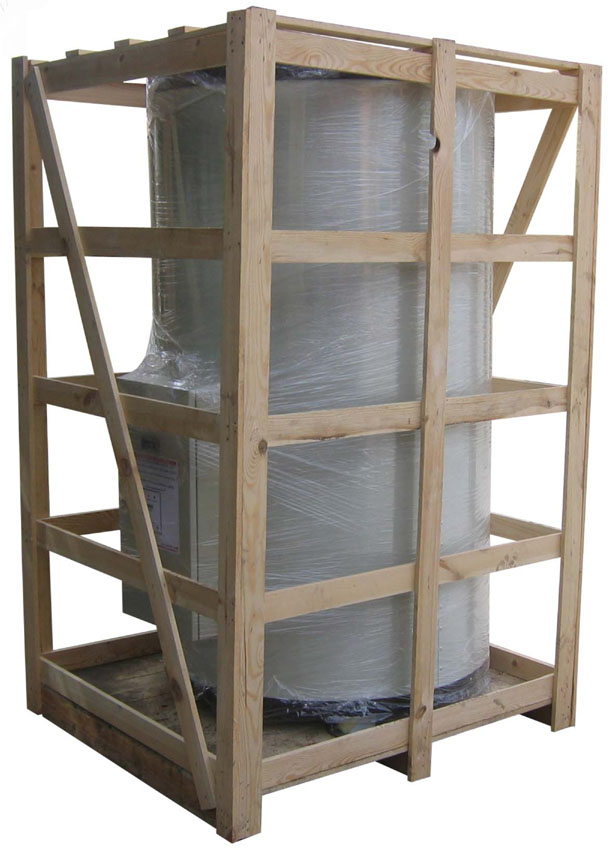

  Packing


Woodbox

  Inner Tank Material


Inner tank can be produced by one of two kinds of steel:
A-   Black carbon steel, tank is hot dip galvanized after welding process
B-   304 L or 316 L quality stainless steel (inox)

  Coating material


- Hot dip galvanized steel painted into white colour and covered with polyethylene against scratching
- Brushed stainless steel which covered with polyethylene against scratching (additional)

  Electrical Specifications


Products are produced in accordance with main electrical standards in every country.
Example: Three-Phase, 50 - 60 Hertz, 190V/200V/208/216V/220V/230V/240V/380V/400V/415V/433V/440V/460V/480V/ 575Volt

  Warranty


        A-   Hot Dip Galvanized Tank Model: 2 years
B-  Stainless Steel Tank Model: 5 years
Electrical Equipment: 2 years



THREE-PHASE ELECTRIC WATER HEATER FOR INDUSTRIAL USE

THREE-PHASE ELECTRIC WATER HEATER FOR INDUSTRIAL USE . . .
