:: THREE-PHASE ELECTRIC BOILER FOR INDUSTRIAL USE . . . |
| |
Product Description |
|
|
| |
|
Solareks Three-phase Industrial Electric boiler is designed to be used for heavy duty and can work simultaneously or separately with two types of energy:
1 - Electric energy
2 - Energy of solid/fuel/gas central heating system, solar energy, heat pump energy, waste energy
Product can be connected to central heating system easily. In summer season when the central heating of the building is turned off water can be heated by electricity or solar energy. In winter time water can be heated by solid/fuel/gas central heating system, heat pump, waste energy. During winter season electricity consumption of the building will be decreased.
Temperature of water can be set by a user at the desired value (electric energy only). Water Heater heats water automatically and keeps it hot and ready for use in an insulated tank.
To be well informed about hot water generating capacities of the products check our catalogues please. |
|
|
|
|
|
|
| |
Capacities |
|
| |
|
100 L – 160 L – 200 L – 250 L – 300 L – 400 L – 450 L – 500 L – 600 L – 750 L – 1000 L – 1250 L – 1500 L – 1750 L – 2000 L – 2500 L – 3000 L – 4000 L – 5000 L |
|
| |
Product Usage Areas |
|
| |
|
Solareks Three-phase Industrial Electric boiler is designed to be used for heavy
duty. Some hints are listed below:
-
Three-phase Industrial Electric boiler can work with solid/fuel/gas operated
central heating system, solar energy, heat pump or waste energy additionally to
electric energy to decrease the energy costs of the building
-
If the
water consumption is more than 300 l/hour industrial electric boiler is
suggested
-
If the
existing cable of the building is not enough to load monophase electric heater
industrial three-phase electric heater is suggested to be used. Three-phase
product consumes less current than monophase product does.
-
Solareks
industrial electric water heater has more safe and automatic specifications.
That's why it is suggested to be used in buildings where hot water consumption
is high and comfort is important.
-
Due to
the fact that industrial electric water heater has high power capacities,
installation of industrial electric heater will decrease investment rather than
installation of many monophase electric water heaters. |
|
| |
Comfort & Quality &
Trust |
|
| |
|
Quality:
Our products are designed after a long study in engineering,
heat transfer and pressure vessels. Goods are made at
the highest technical level in accordance with electrical
safety. Our export is proof of our quality.
Comfort: All products are
designed according to the users' needs and requirements
in order to provide maximum comfort.
Trust: Solareks goods comply with the world
standards. Our products are presented in foreign countries (3 continents/23
countries) and domestic market under Solareks assurance. |
|
| |
Technical
Specifications |
|
| |
|
- Each electric heating element can be turned off/on separately
- Water temperature can be adjusted in range 30°C to 90 °C
- Electric water heater is automatically operated by the thermostat
- Electric heating power range: 9-240 kW
- Polyurethane/Glass-wool/Rockwool insulation material
- High-performance removable 316 L quality stainless steel serpentine tubes (heating coil)
- Overheating thermostat
- Pressure safety valve
- Cathodic protection element
- Silicon cable
- Low water cut out device (additional)
- High quality Siemens made electric equipments are used in the control panel of the product
- 316 L / 316 Ti Stainless steel electric heating element (optional)
- Warning light (additional)
- Flanged connection (additional)
- P&T Valve (additional)
- Mixing Valve (additional)
- Secondary containment tank against leaking water (additional)
- Extra wall hanging equipment (additional)
- Cooling fan (additional)
Circulation pump, automatic valve (additional)
|
 | |
|
| |

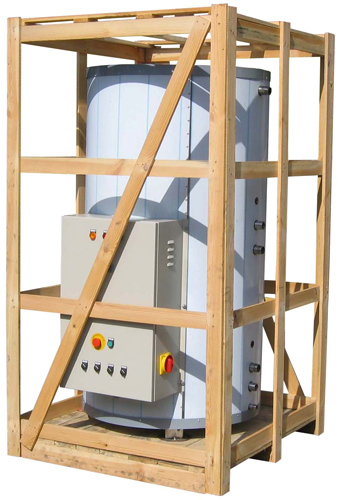

Packing
|
|
| |
|
Woodbox |
|
| |
Inner Tank Material
|
|
| |
|
Inner tank can be produced by one of two kinds of steel:
A-
Black carbon steel, tank is hot dip galvanized after welding process
B-
304 L or 316 L quality stainless steel (inox) |
|
| |
Coating material |
|
| |
|
- Hot dip galvanized steel painted into white colour and covered with polyethylene against scratching
- Brushed stainless steel which covered with polyethylene against scratching (additional) |
|
| |
Electrical
Specifications |
|
| |
|
Products are produced in accordance with main electrical standards in every
country.
Example: Three-Phase, 50 - 60 Hertz,
190V/200V/208/216V/220V/230V/240V/380V/400V/415V/433V/440V/460V/480V/ 575Volt
|
|
| |
Warranty |
|
| |
|
A-
Hot Dip Galvanized Tank Model: 2 years
B- Stainless Steel Tank Model: 5
years
Electrical Equipment: 2 years |
| |
|
 |
