BACK :: SHIP BOILER . . .

Product Description

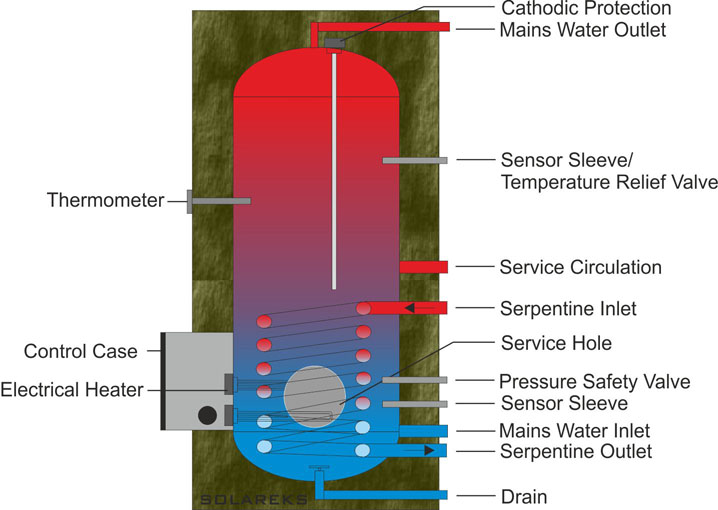

Solareks Ship Boiler is designed to be used in ships. Ship Boiler can work simultaneously or separately with two types of energy:

1-      Electric energy

2-      Engine coolant

While an engine is operating engine coolant is passing through the serpentine tubes which are located in boiler and heats the water. Thus the engine coolant saves the energy. While the engine is not working electric heater heats the water.

Temperature of water can be set by a user at the desired value (electrical energy only). Water Heater heats water automatically and keeps it hot and ready for use in an insulated tank.

Ship boilers are produced according to navy regulations. Before ordering products customers should consider working conditions of products.

To be well informed about hot water generating capacities of the products check our catalogues please.
SHIP BOILER

SHIP BOILER
  Capacities


100 L – 160 L – 200 L – 250 L – 300 L – 400 L – 450 L – 500 L – 600 L – 750 L – 1000 L – 1250 L – 1500 L – 1750 L – 2000 L – 2500 L – 3000 L – 4000 L – 5000 L

  Product Usage Areas


Solareks Ship Boiler is designed to be used in ships. By heating water with cooling fluid of the ships energy consumption of the ship will decrease. Below are listed some criteria how to choose the product:

-          In case when hot water is not heated by the coolant you order model of water heater that heats water only by electricity.

-          If water is heated by the coolant fluid Solareks standard model should be chosen.

-          Power and voltage of electric heating element can be chosen from our technical catalogue

-          Special dimensioned yacht boilers are produced according to customers’ needs, no matter what is the order amount.

  Comfort & Quality & Trust


Quality: Our products are designed after a long study in engineering, heat transfer and pressure vessels. Goods are made at the highest technical level in accordance with electrical safety. Our export is proof of our quality.
Comfort: All products are designed according to the users’ needs and requirements in order to provide maximum comfort.
Trust: Solareks goods comply with the world standards. Our products are presented in foreign countries (3 continents/23 countries) and domestic market under Solareks assurance.

  Technical Specifications

- Each electric heating element can be turned off/on separately
- Water temperature can be adjusted in range 30°C  to 90 °C
- Electric heating elements are automatically operated by digital thermostat
- Electric heating power range: 9-240 kW
- Ability to operate without ground connection
- Polyurethane/Glass-wool/Rockwool insulation material
- High-performance 316 L high-quality stainless steel serpentine tubes
- Overheating thermostat
- Pressure safety valve
- Cathodic protection element
- Silicon cable
- Low water cut out device (additional)
- High-quality Siemens made electric equipment is used in the control panel of the product
- 316 L / 316 Ti Stainless steel electric heating element (optional)
- Warning light (additional)
- Flanged connection (additional)
- P&T Valve (additional)
- Mixing Valve (additional)
- Secondary containment tank against leaking water (additional)
- Extra wall hanging equipment (additional)
- Cooling fan (additional)
- Circulation pump, automatic valve (additional)



SHIP BOILER
SHIP BOILER . . .
SHIP BOILER . . .

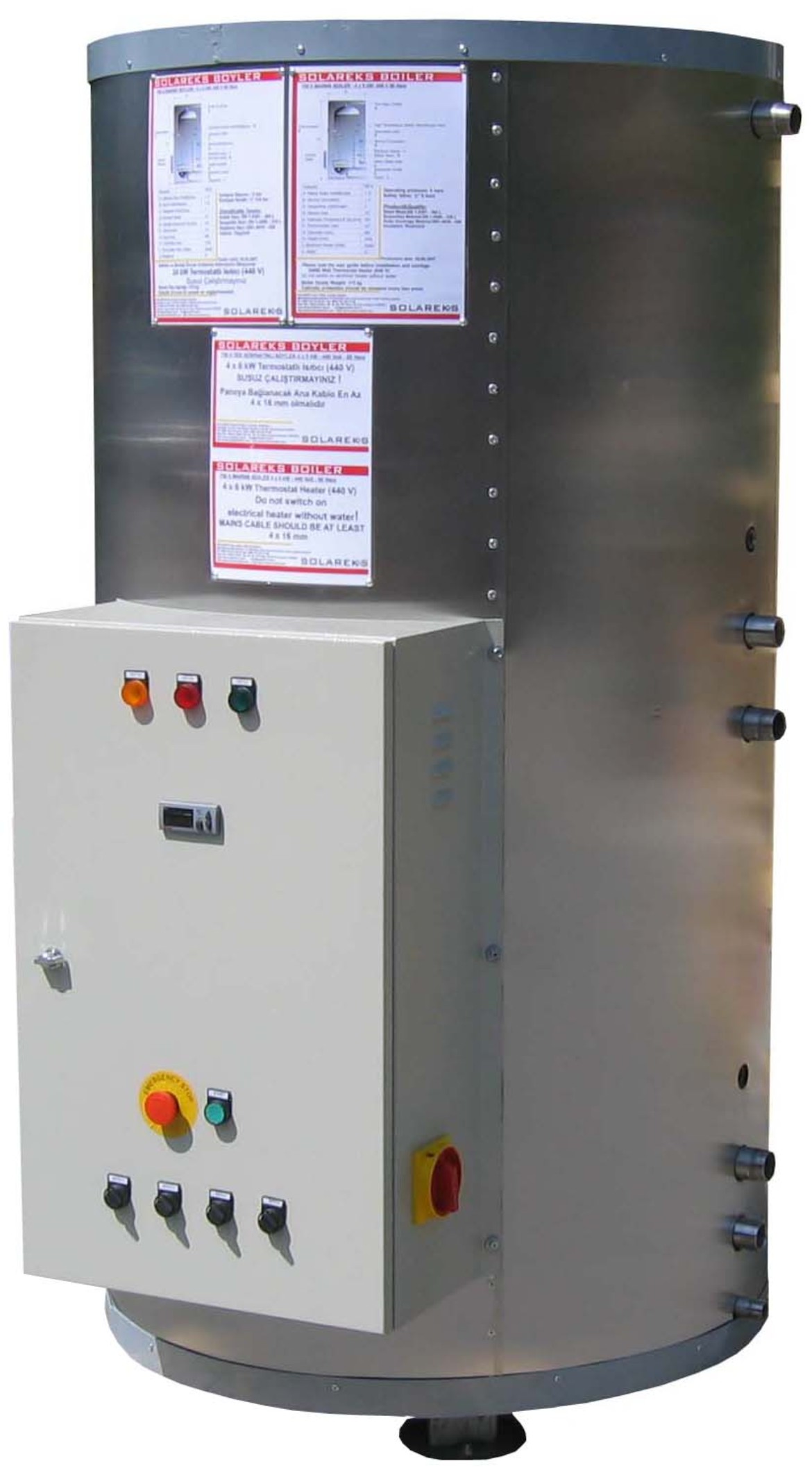

Ship boiler

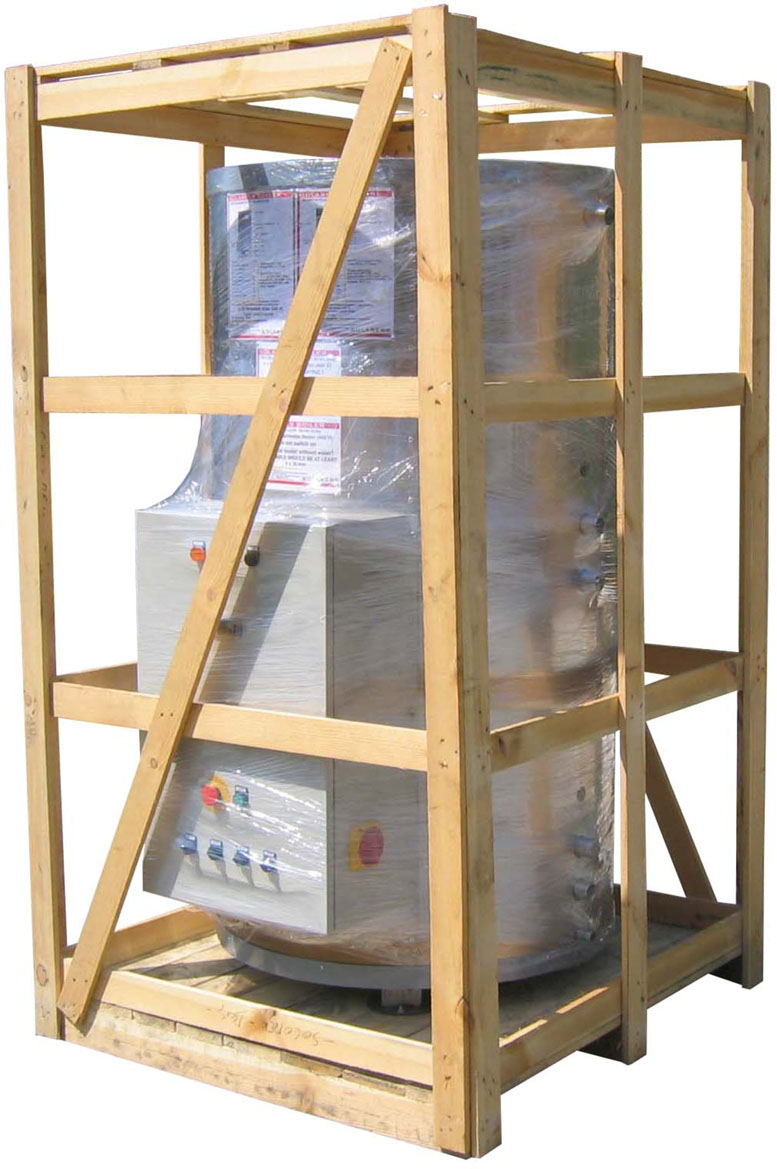

  Packing


Woodbox

  Inner Tank Material


Inner tank can be produced by one of two kinds of steel:

A-     304 L quality stainless steel (Inox)

B-     316 L quality stainless steel (Inox)

  Coating material


- Hot dip galvanized steel painted into white colour and covered with polyethylene against scratching
- Brushed stainless steel which covered with polyethylene against scratching (additional)

  Electrical Specifications


Products are produced in accordance with main electrical standards in every country.
Example:  Three-Phase, 50 - 60 Hertz, 190V/200V/208/216V/220V/230V/240V/380V/400V/415V/433V/440V/460V/480V/ 575Volt. Products can operate without ground connection.

  Warranty


A-     Hot Dip Galvanized Tank Model: 2 years

B-  Stainless Steel Tank Model: 5 years

Electrical Equipment: 2 years




Ship Boiler
