BACK :: MONOPHASE ELECTRIC WATER HEATER . . .
  Product Description

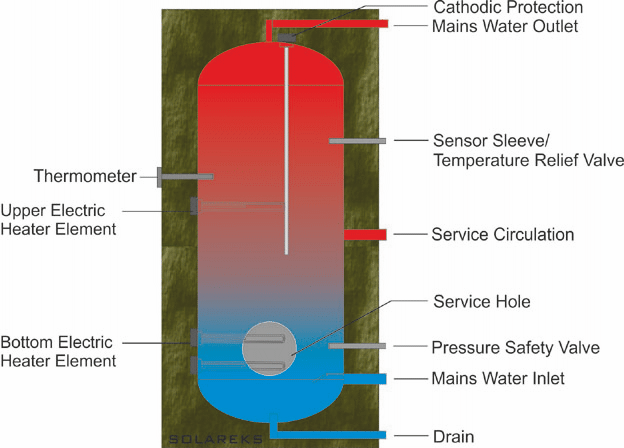

Solareks monophase electric water heater is primarily designed for usage in areas where there is no three-phase electricity and hot water consumption is in range: 90 - 300 l/hour. Capacity of heater can be in range between 100 l - 500 l. Upper and lower electric heating elements can be operated separately. When the hot water consumption in the building is low, energy can be saved by using only upper electric heating element.

Temperature of water can be set by a user at the desired value. Water Heater heats water automatically and keeps it hot and ready for use in an insulated tank.

To be well informed about hot water generating capacities of the products check our catalogues please.

  Capacities


100 L 160 L 200 L 250 L 300 L 400 L 450 L 500 L

MONOPHASE ELECTRIC WATER HEATER

MONOPHASE ELECTRIC WATER HEATER
  Product Usage Areas


Solareks monophase  electric water heater is used in areas where there is no three- phase electricity in the buildings and the hot water is in range: 90 -300 l/hour. Some usage areas are listed below:
-          Houses
-          Restaurants
-          Sport Centers
-          Small and medium enterprises
The electricity consumption of monophase electric water heater is higher than of three-phase electric water heater where a compensator is used in the building.

  Comfort & Quality & Trust


Quality: Our products are designed after a long study in engineering, heat transfer and pressure vessels. Goods are made at the highest technical level in accordance with electrical safety. Our export is proof of our quality.

Comfort: All products are designed according to the users' needs and requirements in order to provide maximum comfort.

Trust: Solareks goods comply with the world standards. Our products are presented in foreign countries (3 continents/23 countries) and domestic market under Solareks assurance.

  Technical Specifications


- Overheating thermostat: electric water heater is automatically operated by the thermostat

- Each electric heating element can be operated separately

- EWH can be used with a capacity of % 50 to save energy

- Water temperature can be adjusted in range 30°C to 90 °C

- Electric power range: 4-14 kW

- Pressure safety valve

- P&T Valve (additonal)

- Mixing Valve (additional)

- Flanged connection (additional)

- Cathodic protection element

- Silicon cable

- 316 L / 316 Ti Stainless steel heating element (optional)

- Drain Pan (additional)

- Extra wall hanging equipment (additional)

- Polyurethane insulation material

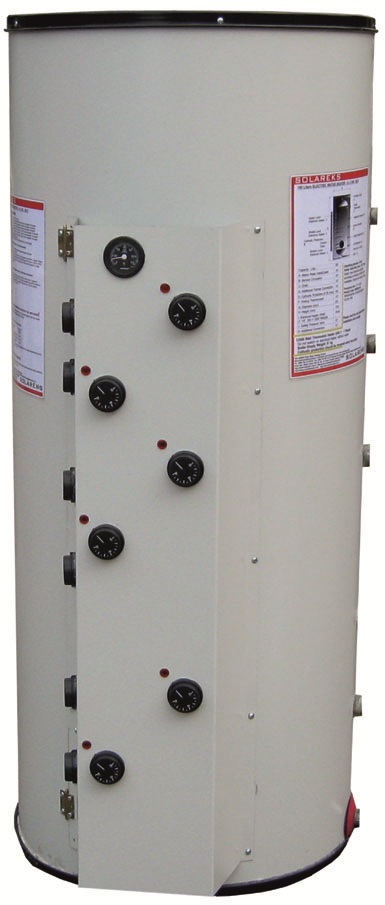

Monophase electric water heater

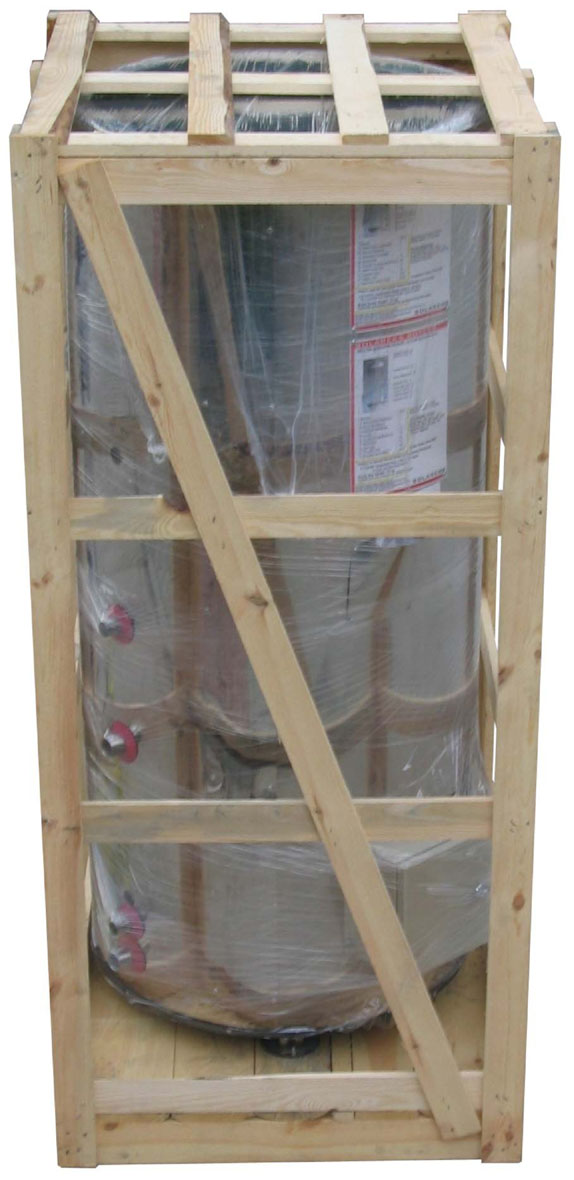

  Packing


Bubled neylon or wood box

  Inner Tank Material


Inner tank is produced by two kinds of steel:
A-   Black carbon steel, tank is hot dip galvanized after welding process
B-   304 L or 316 L quality stainless steel (inox)

  Coating material


White painted metal plates (standard)
Photo covered body (additional)
Brushed stainless steel outer body (additional)

  Electrical Specifications


Products are produced in accordance with main electrical standards in every country.
Example: Monophase, 50 - 60 Hertz, 100V/110V/115V/120V/125V/127/200V/202V/220V/230V/240V/250 Volt

  Warranty


A-   Hot Dip Galvanized Tank Model: 2 years

B-  Stainless Steel Tank Model: 5 years

Electrical Equipment: 2 years



MONOPHASE ELECTRIC WATER HEATER
MONOPHASE ELECTRIC WATER HEATER
